Lumix®
Ballast
Ballasts are interchangeable with the light bulbs (new bulbs
can be used with existing ballast) and come in two options:
magnetic and electronic. Magnetic ballasts last longer and
shield the effects of variations in electric-current
making them ideal in countries where current fluctuations
occur.

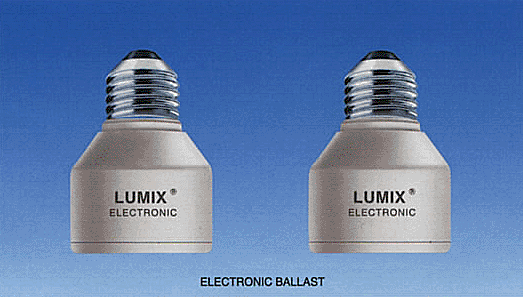

1. LUMIX®
Electronic Ballast
(for PL & BBL Type) |
 |
|
|
 |
|
Ballast For |
Base |
A - Length
(mm) |
B - Width
(mm) |
Packing
(pcs) |
PL 7-9-11W
BBL 7-9W
PL2U 10W
PL2U 15W |
E26/E27/B22
E26/E27/B22
E26/E27/B22
E26/E27/B22 |
74
74
74
74 |
54
54
54
54 |
50
50
50
50 |
|
|
|
VOLTAGE: 110-130V or 220-240V Electronic Ballast |

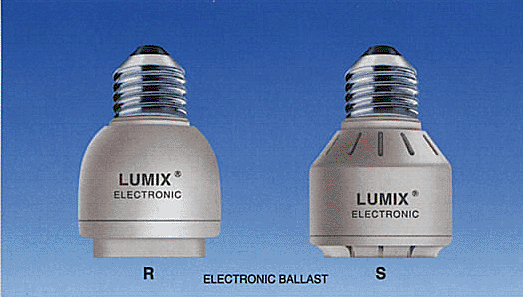

2. LUMIX®
Electronic Ballast
(for BBL 2H Type) |
 |
|
|
 |
|
Ballast For |
Base |
A - Length
(mm) |
B - Width
(mm) |
Packing
(pcs) |
BBL2H 20W
BBL2H 20W
BBL2H 27W
BBL2H 27W |
E26/E27/B22
E26/E27/B22
E26/E27/B22
E26/E27/B22 |
R 83
S 95
R 83
S 95 |
R 60
S 57
R 60
S 57 |
50
50
50
50 |
|
|
|
VOLTAGE: 110-130V or 220-240V Electronic Ballast |

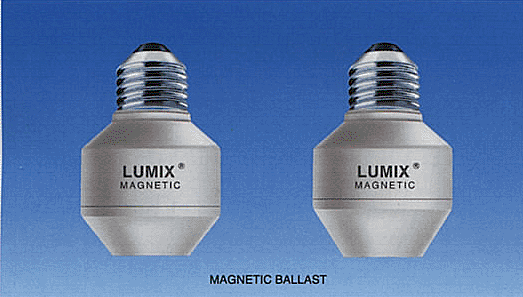

3. LUMIX®
Magnetic Ballast
(for PL Type) |
 |
|
|
 |
|
Ballast For |
Base |
A - Length
(mm) |
B - Width
(mm) |
Packing
(pcs) |
PL 7-9-11W
PL 7-9-11W
PL2U 10-13-15W
PL2U 10-13-15W |
E26/E27/B22
E26/E27/B22
E26/E27/B22
E26/E27/B22 |
81
87
81
87 |
58
58
58
58 |
24
24
24
24 |
|
|
|
VOLTAGE: 110-130V or 220-240V
Magnetic Ballast |

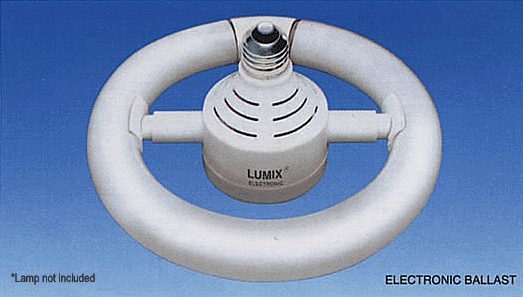

4. LUMIX®
Electronic Ballast
(for FCL* Type) |
 |
|
|
 |
|
Ballast For |
Watt |
Base |
A - Length
(mm) |
B - Width
(mm) |
Packing
(pcs) |
FCL
FCL |
20 / 22
32 |
E26/E27/B22
E26/E27/B22 |
99
99 |
69
69 |
50
50 |
|
* FCL: Fluorescent Circular Lamp |
|
VOLTAGE: 110-130V or 220-240V
Electronic Ballast |
|
|
