A. Lumix® Detachable Electronic

Each of our energy saving product types has a wide range of base caps, wattages, voltages, colors, shapes and sizes.  The detachable option allows the bulb to be replaced separately from the ballast, as CFL ballasts have a long life, making this a very economical option.

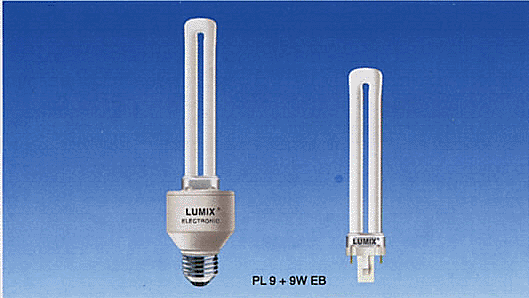

A1. LUMIX® PL9+9W EB Lumix Energy Saving Lamp :: PL9+9W EB Comparison Img

Lumix Energy Saving Lamp :: PL9+9W EB
Type Watt Base A - Length
(mm)		 B - Width
(mm)		 Packing
(pcs)
PL SET 9 E26/E27/B22 212 54 10 / 50


COLOR:   Daylight (6500 K), Cool White (4200 K), Warm White (2700 K)
VOLTAGE:  110-130V or 220-240V Electronic Ballast

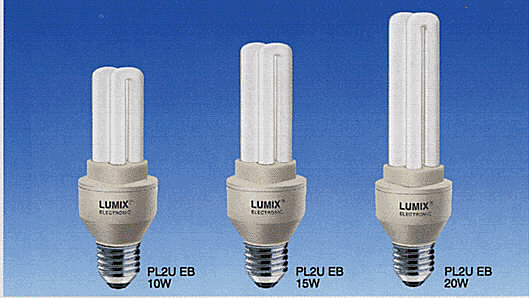

A2. LUMIX® PL2U EB Lumix Energy Saving Lamp :: PL2U EB Comparison Img

Lumix Energy Saving Lamp :: PL2U EB
Type Watt Base A - Length
(mm)		 B - Width
(mm)		 Packing
(pcs)
PL2U EB
PL2U EB
PL2U EB		 10
15
20		 E26/E27/B22
E26/E27/B22
E26/E27/B22		 157
193
212		 54
54
54		 10 / 50
10 / 50
10 / 50


COLOR:   Daylight (6500 K), Cool White (4200 K), Warm White (2700 K)
VOLTAGE:  110-130V or 220-240V Electronic Ballast

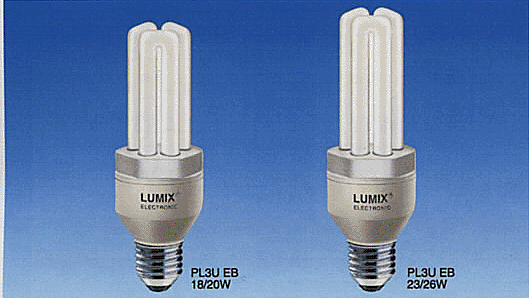

A3. LUMIX® PL3U EB  Lumix Energy Saving Lamp :: PL3U EB Comparison Img

Lumix Energy Saving Lamp :: PL3U EB
Type Watt Base A - Length
(mm)		 B - Width
(mm)		 Packing
(pcs)
PL3U EC
PL3U EC		 18 / 20
23 / 26		 E26/E27/B22
E26/E27/B22		 167
198		 54
55		 10 / 50
10 / 50


COLOR:   Daylight (6500 K), Cool White (4200 K), Warm White (2700 K)
VOLTAGE:  110-130V or 220-240V Electronic Ballast

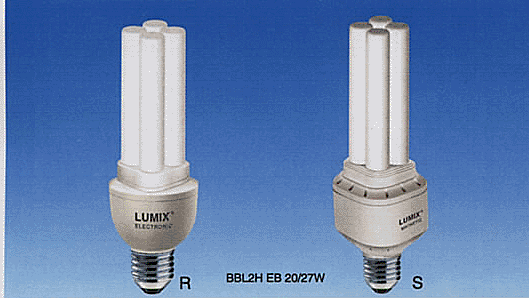

A4. LUMIX® BBL2H EB Lumix Energy Saving Lamp :: BBL2H EB Comparison Img

Lumix Energy Saving Lamp :: BBL2H EB
Type Watt Base A - Length
(mm)		 B - Width
(mm)		 Packing
(pcs)
BBL2H EB
BBL2H EB
BBL2H EB
BBL2H EB
BBL2H EB		 20
27
20
27
36		 E26/E27/B22
E26/E27/B22
E26/E27/B22
E26/E27/B22
E26/E27/B22		 R 196
R 209
S 200
S 213
S 313		 R 60
R 60
S 57
S 57
S 57		 10 / 50
10 / 50
10 / 50
10 / 50
12


COLOR:   Daylight (6500 K), Cool White (4200 K), Warm White (2700 K)
VOLTAGE:  110-130V or 220-240V Electronic Ballast



B. Lumix® Detachable Magnetic

Each of our energy saving product type has wide range of base caps, wattages, voltages, colors, shapes and sizes.

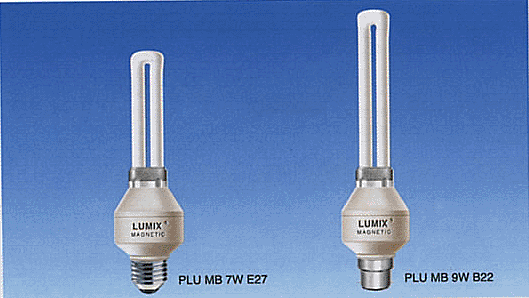

B1. LUMIX® PLU MB  Lumix Energy Saving Lamp :: PLU MB Comparison Img

Lumix Energy Saving Lamp :: PLU MB
Type Watt Base A - Length
(mm)		 B - Width
(mm)		 Packing
(pcs)
PLU MB
PLU MB		 7
9		 E26/E27/B22
E26/E27/B22		 193
223		 58
58		 10 / 50
10 / 50


COLOR:   Daylight (6500 K), Cool White (4200 K), Warm White (2700 K)
VOLTAGE:  220-240V Magnetic Ballast

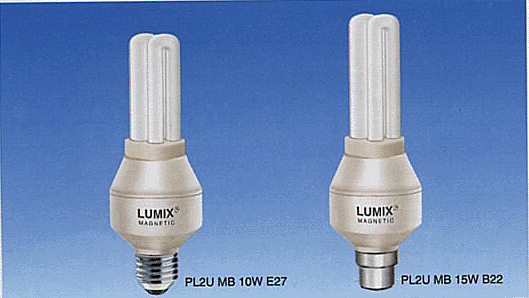

B2. LUMIX® PL2U MB  Lumix Energy Saving Lamp :: PL2U MB Comparison Img

Lumix Energy Saving Lamp :: PL2U MB
Type Watt Base A - Length
(mm)		 B - Width
(mm)		 Packing
(pcs)
PL2U MB
PL2U MB		 10
15		 E26/E27/B22
E26/E27/B22		 169
194		 58
58		 10
10


COLOR:   Daylight (6500 K), Cool White (4200 K), Warm White (2700 K)
VOLTAGE:  220-240V Magnetic Ballast

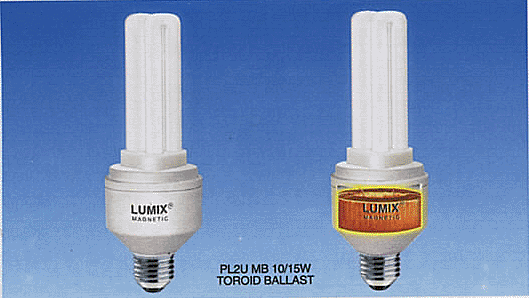

B3. LUMIX® PL2U MB
(Toroid Ballast)		  Lumix Energy Saving Lamp :: PL2U MBT Comparison Img

Lumix Energy Saving Lamp :: PL2U MBT
Type Watt Base A - Length
(mm)		 B - Width
(mm)		 Packing
(pcs)
PL2U MBT
PL2U MBT		 10
15		 E26/E27/B22
E26/E27/B22		 166
191		 60
60		 10
10


COLOR:   Daylight (6500 K), Cool White (4200 K), Warm White (2700 K)
VOLTAGE:  220-240V Magnetic Ballast


Lumix® energy saving products
Lumix Energy Saving Lamp :: Lumix INDIVIDUAL Lumix® Individual
Range of Individual Lamp bulbs which provide many light density and distribution options and fit well in normal fixtures.
Lumix Energy Saving Lamp :: Lumix COMPACT Lumix® Compact
Sealed assembly CFL, which combine a lamp, ballast, and adapter as a single unit.
Lumix Energy Saving Lamp :: Lumix DETACHABLE Lumix® Detachable
Detachable two-component version. The bulb is detachable from the ballast or adapter.
Lumix Energy Saving Lamp :: Lumix CAPSULE Lumix® Capsule
Single sealed assembly CFL unit with designer glass caps that provide higher decor value.
Lumix Energy Saving Lamp :: Lumix BALLAST Lumix® Ballast
Ballasts provide the required voltage for the attached lamps (e.g. Lumix Individual). Available in electronic and magnetic.
